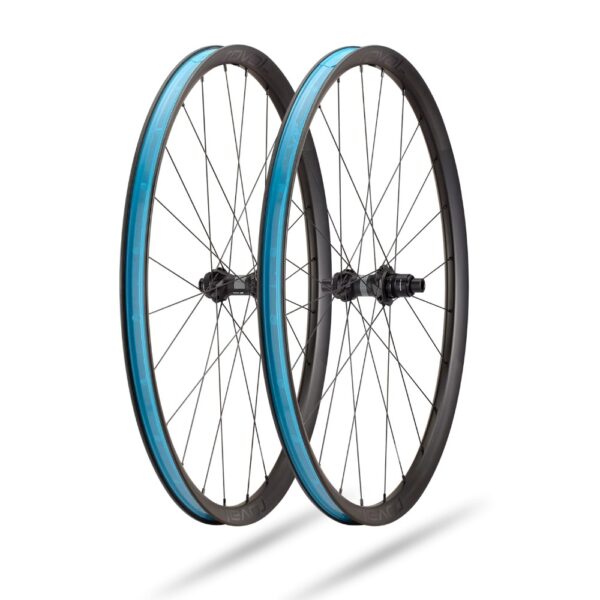

Roval Terra C III 2026 Roval Terra C III Wheels

De un vistazo

Use Gravel cycling

Weight 1,594 g with strap and valves

Rim depth and width 25.5 mm profile, 38 mm outer width, 27 mm inner width

Anchor width 4.9 mm

Hub and coupling DT Swiss 370, 18T

Pathfinder TLR Fast Gravel tires recommendation – 45 mm

Technical specifications

Tires

• Wheel Size / ETRTO: 622 x 27 (700c)

• Tubeless compatibility: Yes

• Mousse compatibility: Yes

• Compatibility with Brakes: Disc (Centerlock)

• Hoop Construction: Carbon for Hooked housing

• Valve Length: Roval Tubeless Valve, Alloy 35 mm

• Number of Spokes: Front: 24H, Rear: 24H

• Rear Rim: Terra C III Carbon Clincher, 700c (CR2479)

• Rear Hoop Dimensions: Profile: 25.5 mm, Outside Width (at widest point): 38 mm, Inside Width: 27 mm, Bead Hook Width: 4.9 mm

• Front Rim: Terra C III Carbon Clincher, 700c (CR2479)

• Front Ring Dimensions: Profile: 25.5 mm, Outside Width (at widest point): 38 mm, Inside Width: 27 mm, Bead hook width: 4.9 mm

Bushings

• Rear Hub: DT Swiss 370 Straight Pull, Center Lock, 12×142 mm

• Rear hub: DT Swiss Ratchet LN (18T): SRAM XD-R

• Rear Hub Bearings: DT Swiss stainless steel – Drive Side (DS): 6902 (15 x 28 x 7 mm), Opposite Side (NDS): 6902 (15 x 28 x 7 mm)

• Front Hub: DT Swiss 370 Straight Pull, Center Lock, 12×100 mm

• Front Hub Bearings: DT Swiss stainless steel – Drive Side (DS): 6902 (15 x 28 x 7 mm), Opposite Side (NDS): 6902 (15 x 28 x 7 mm)

Radios and ringleaders

• Nipples: Sapim Secure Lock Double Square Alloy Black, 2.0 x 18 mm, 16 cNm

• Rear Spokes: Sapim D-Light Straightpull, 2.0×1.65 mm: 24 pcs, (Drive Side (DS): 289 mm, Opposite Side (NDS): 293 mm)

• Rear Radiusing: Crossing to one / Crossing to three (2:1), no interlocking

• Front Spokes: Sapim D-Light Straightpull, 2.0×1.65 mm: 24 pcs, (Drive Side (DS): 292 mm, Opposite Side (NDS): 292 mm)

• Front Radial: Two-row / Radial (2:1), not interlocking

Tire information

• Tubeless Tape Width: 29 mm

• Tire Type: Tubeless and Tubed Tubes

• Design Tire: Pathfinder TLR Fast Gravel Tire 45 mm

• Approved Tire Widths: 35 mm – 60 mm

• Maximum Pressure: 35 mm – 70 psi, 36-45 mm – 55 psi, 46-50 mm – 45 psi, 51-60 mm – 40 psi

Weight

• Wheelset weight: 1,594 g (with valves and belt)

• Rear weight: 849 g (with valves and strap)

• Front Weight: 745 g (with valves and belt)

General

• Warranty: Limited lifetime warranty

• Mounting Method: Hand-assembled

• Weight Limit: 275 lbs. / 125 kg.

• Certifications: ISO 5775-2, UCI Approved.

• E-bike approved: Yes, SL style systems or 350W max.

• Extras: 4 spokes and spare nipples
