Superb power, capability and range.
The Levo 4 EVO is made for riders who don’t tiptoe over terrain. Riders who tackle the steepest slopes, ride bike parks without the need for lifts, and are looking for a bike that keeps their cool in fast, technical and demanding terrain conditions.
This is Electric Enduro.

View Details

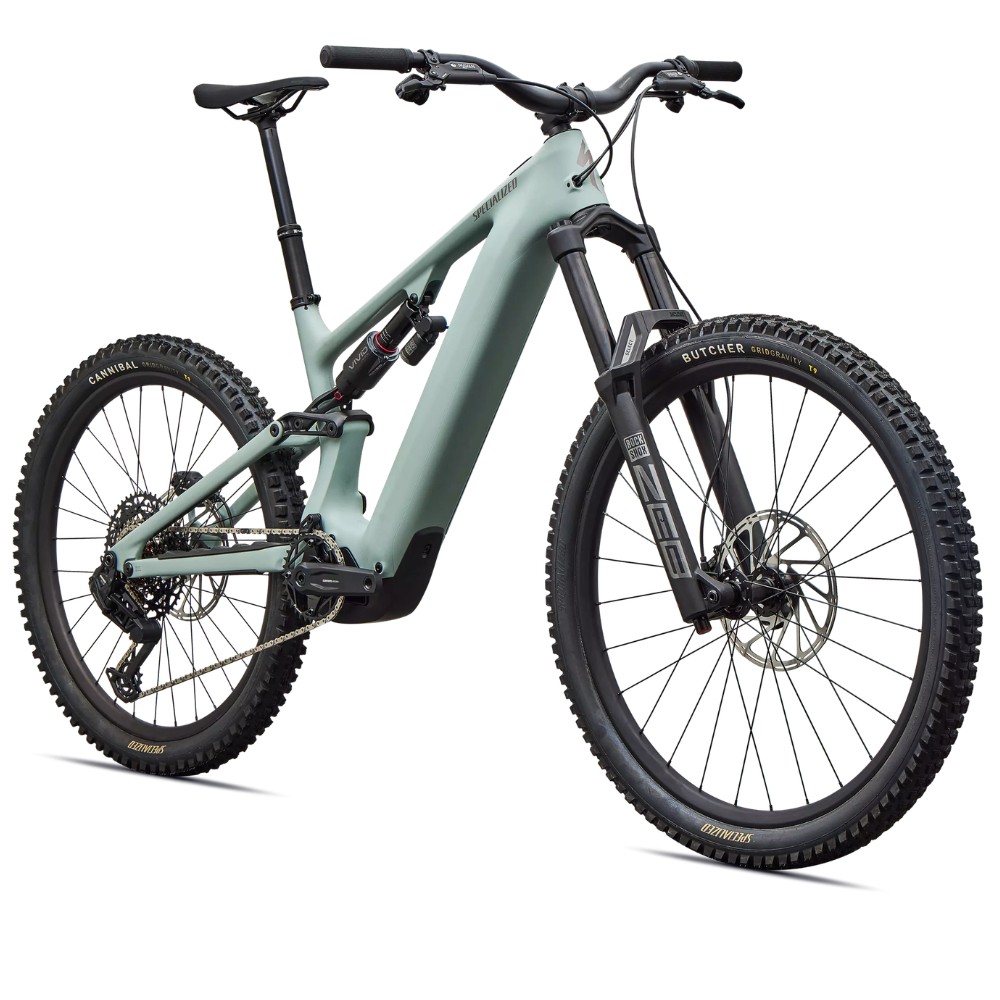

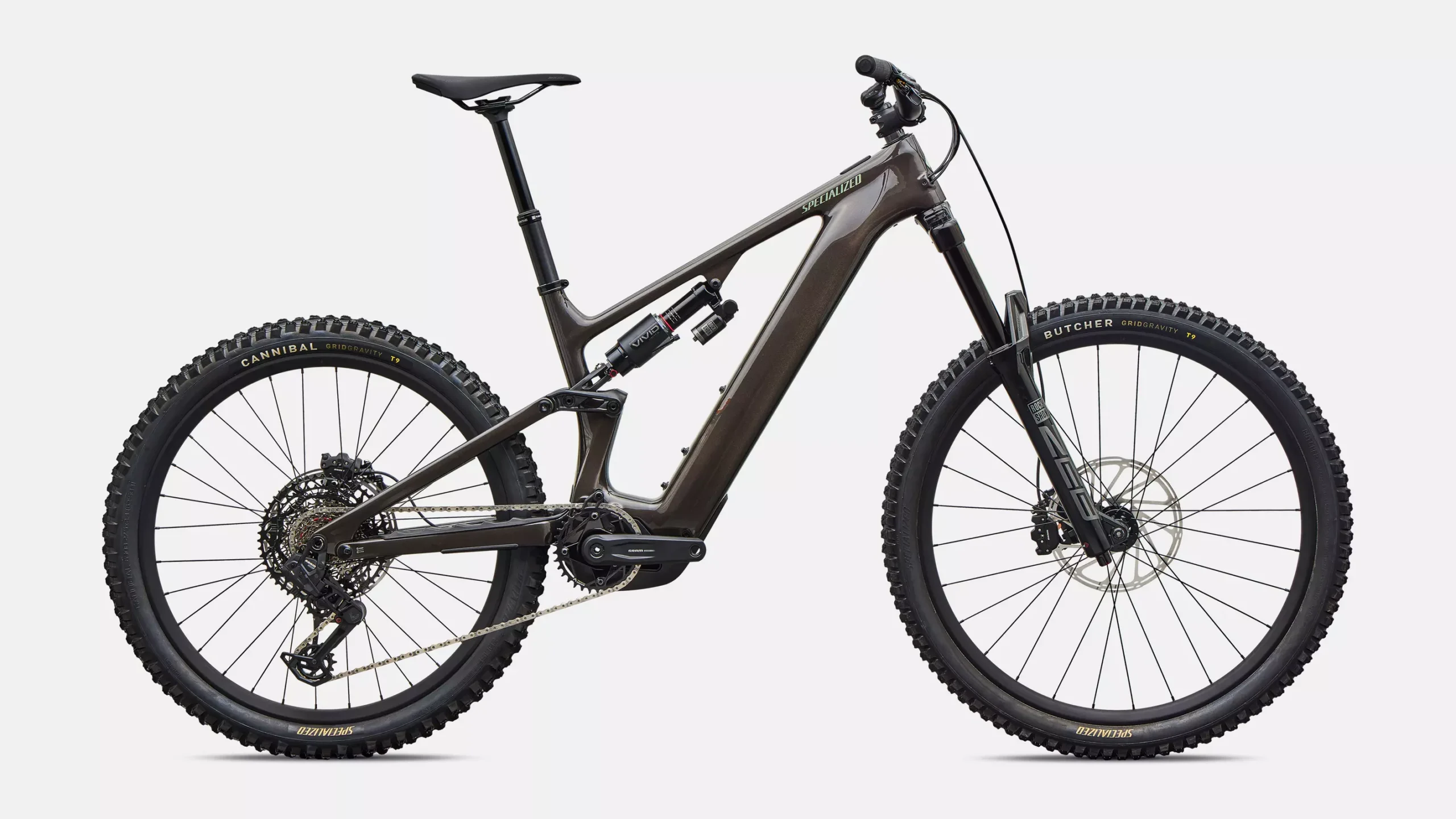

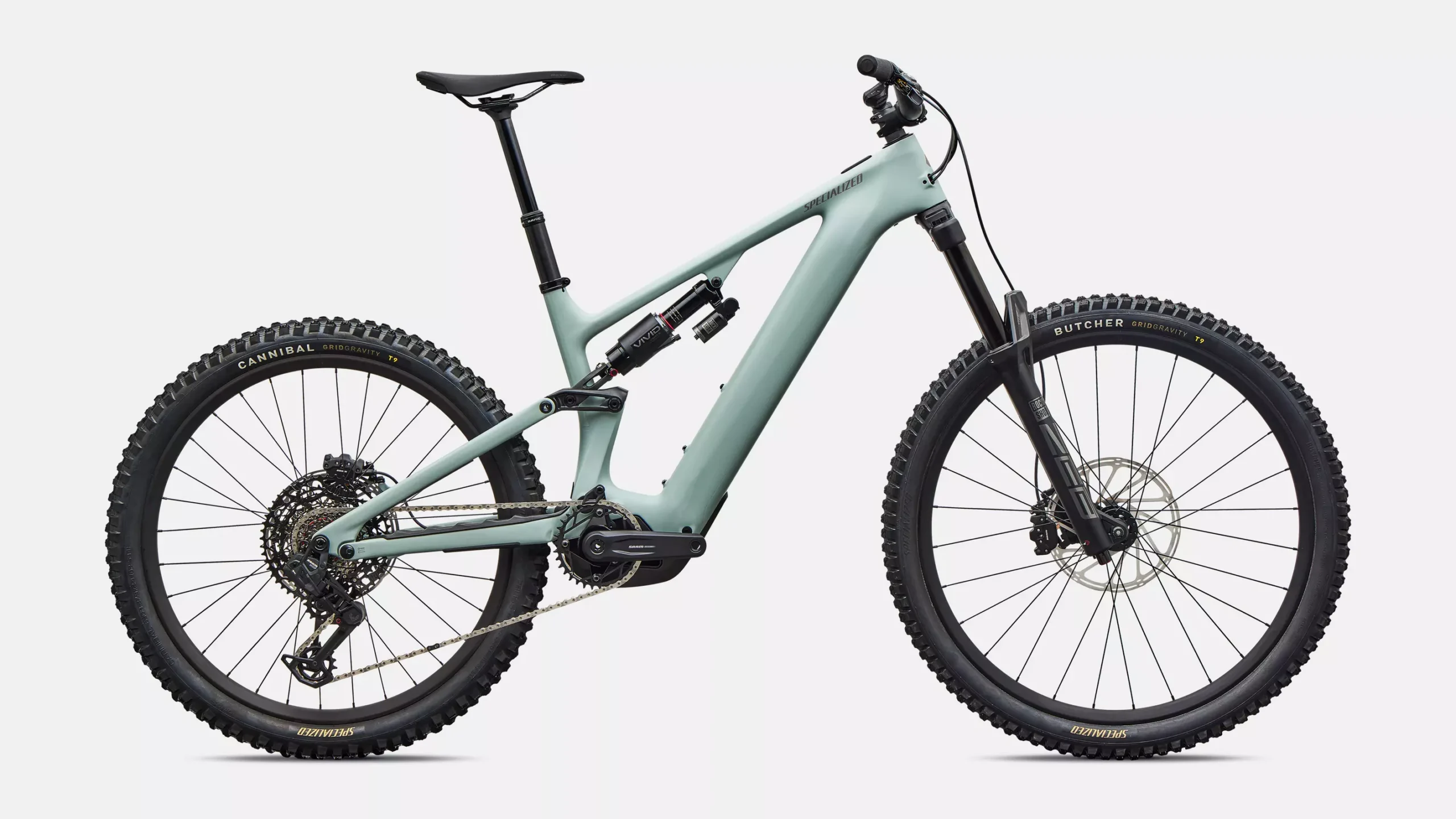

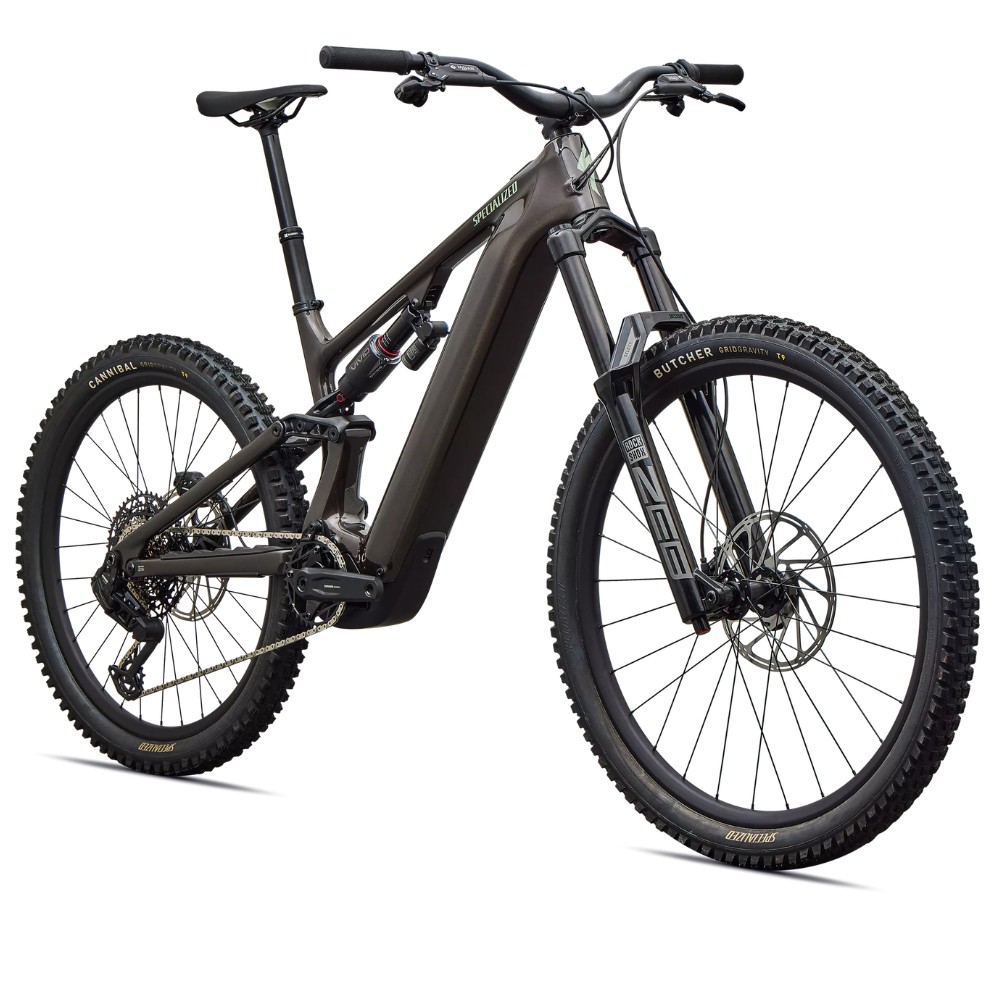

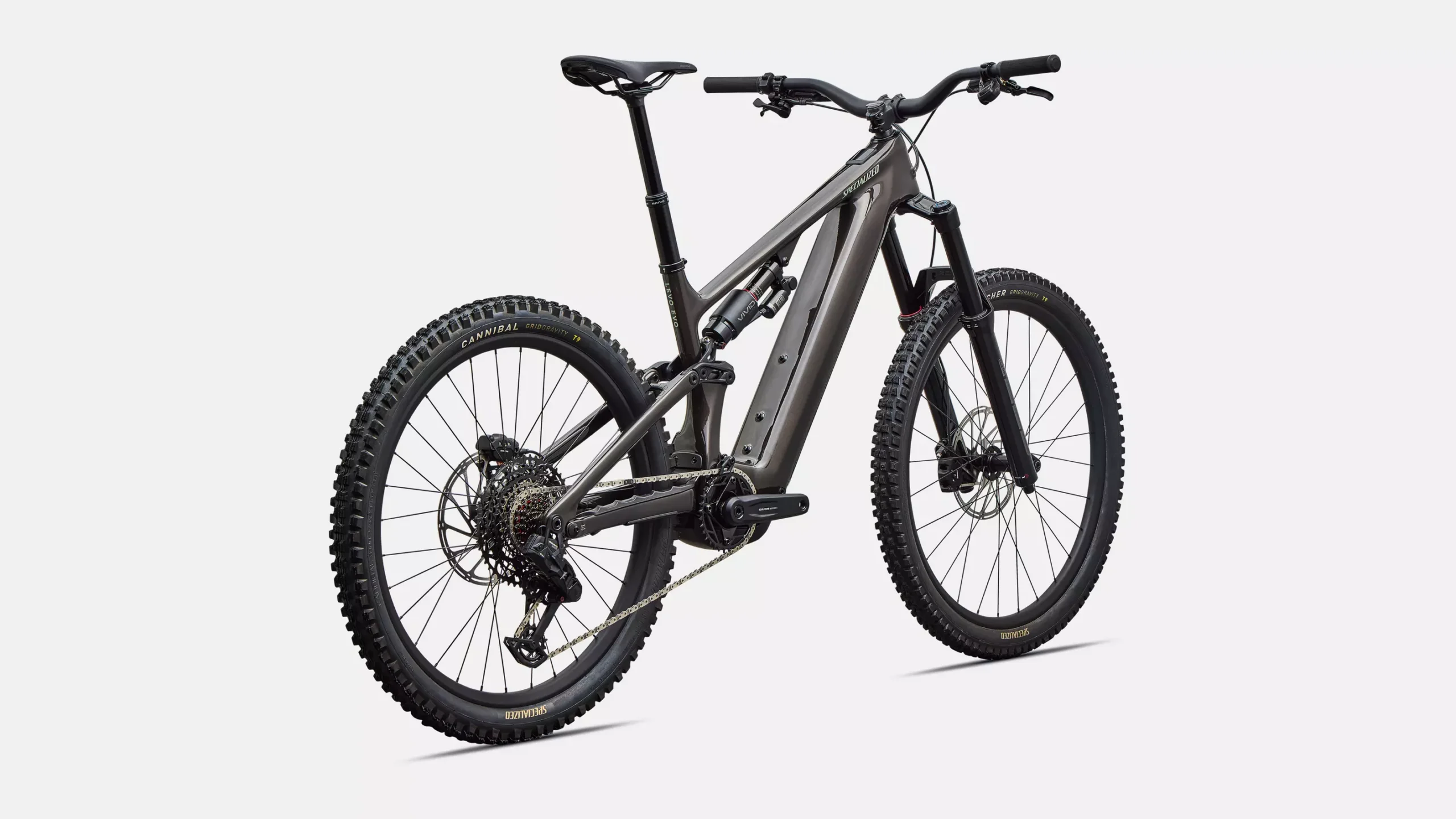

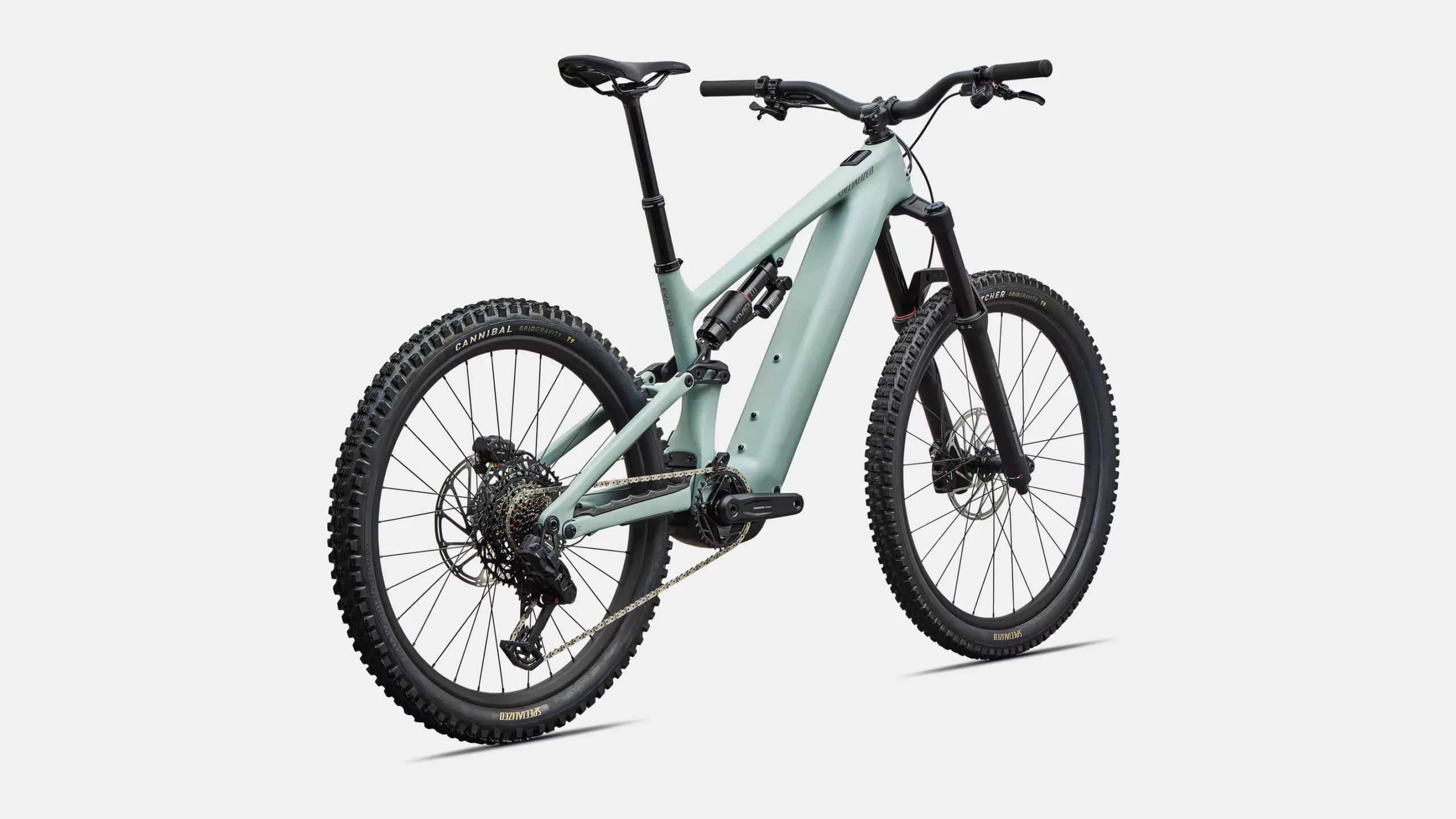

Specialized Levo 4 EVO Comp 2027

7.499,00 €

  • Payment methods

  • Card:

  • Wire transfer:

All our bicycles are shipped assembled and adjusted at no additional cost.

Superb power, capability and range.
The Levo 4 EVO is made for riders who don’t tiptoe over terrain. Riders who tackle the steepest slopes, ride bike parks without the need for lifts, and are looking for a bike that keeps their cool in fast, technical and demanding terrain conditions.
This is Electric Enduro.

View Details

Product description

Technical Specifications

Technical Specifications

Electrical System

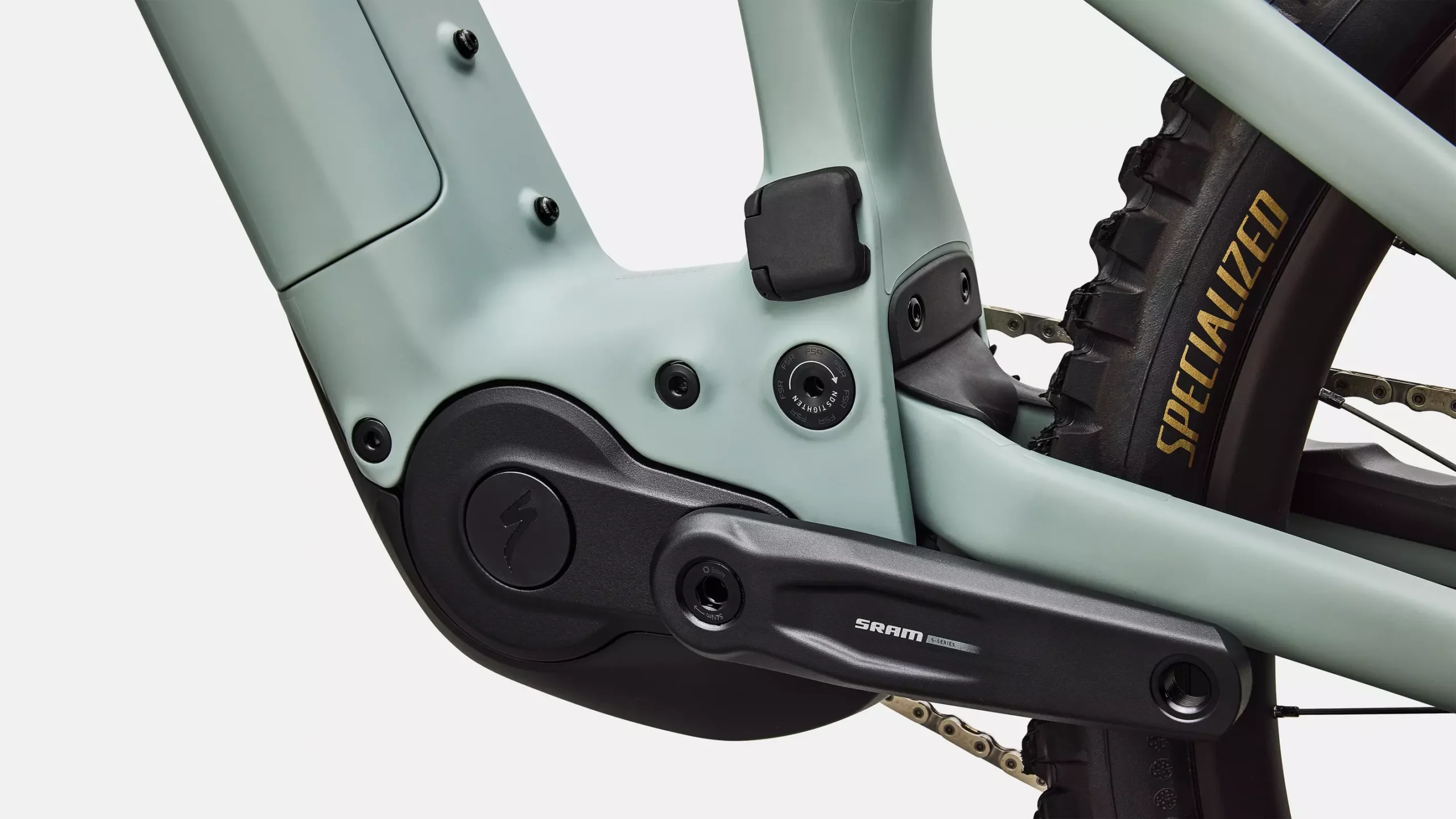

  • Motor: Motor Specialized 3.1 | 105 Nm de par | 810 W de potencia máxima.
  • Battery: Specialized Turbo X2, 840 Wh integrated into the frame.

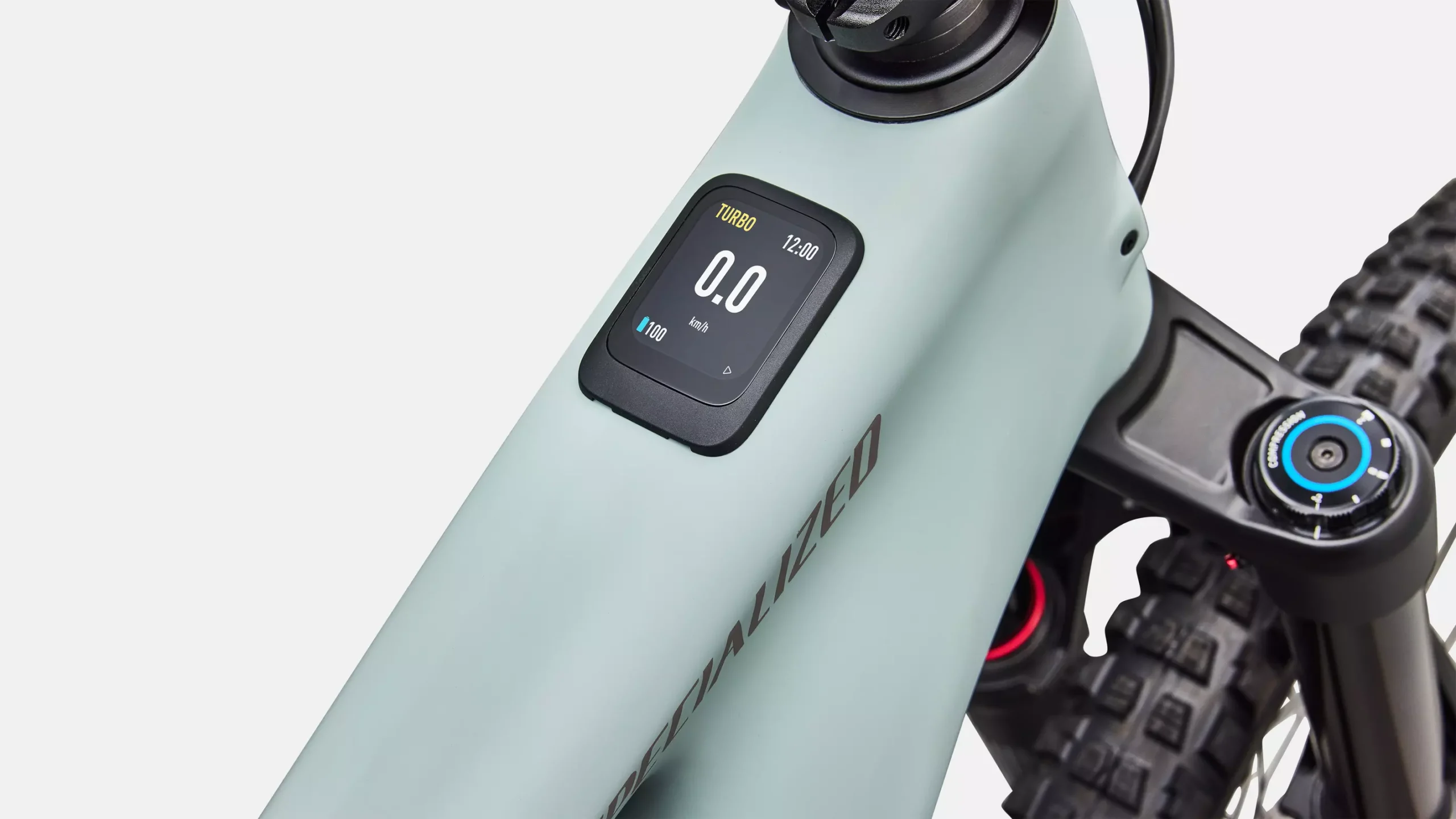

  • Control screen: Mastermind TCU, 2.2″ high resolution. Customizable through the Specialized App and compatible with Apple Find My.
  • Charger: Specialized 4 amp.

Frame and Geometry

  • Cuadro: Carbono Levo Evo FACT 11m | 170 mm de recorrido trasero | Punteras 12×148 mm | Compatible con SRAM UDH.
  • Ajustes: Ángulo de dirección y longitud de vainas ajustables.
  • Wheel configuration: Mullet (29″ front / 27.5″ rear).
  • Storage: SWAT system integrated in the diagonal tube.
  • Saddle clamp: Alloy, 38.6 mm.

Suspension

  • Horquilla: Nueva SRAM FS ZEB Select | 180 mm de recorrido | Muelle Linear XL | Amortiguador Delta RC | Ajuste de rebote.

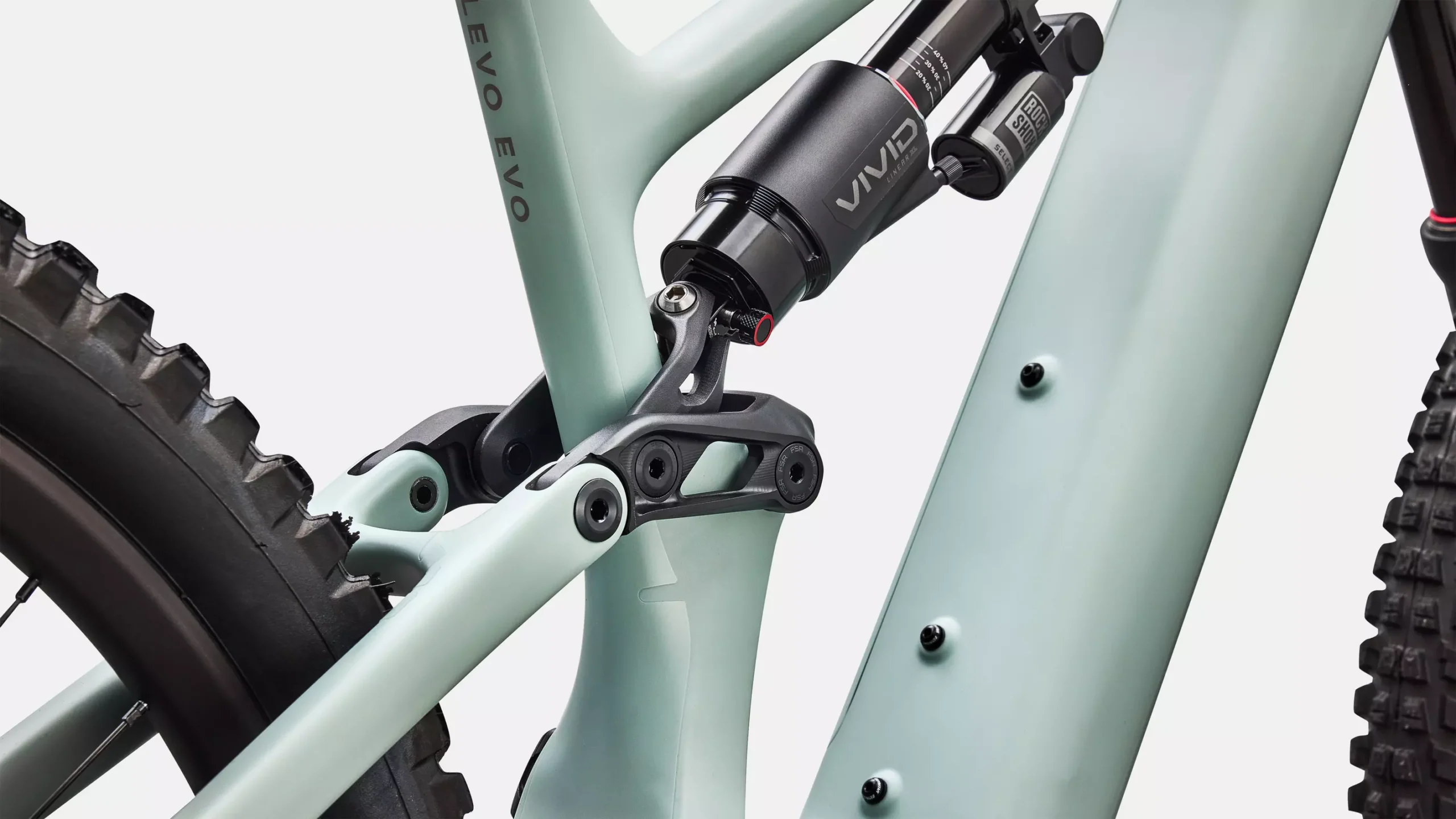

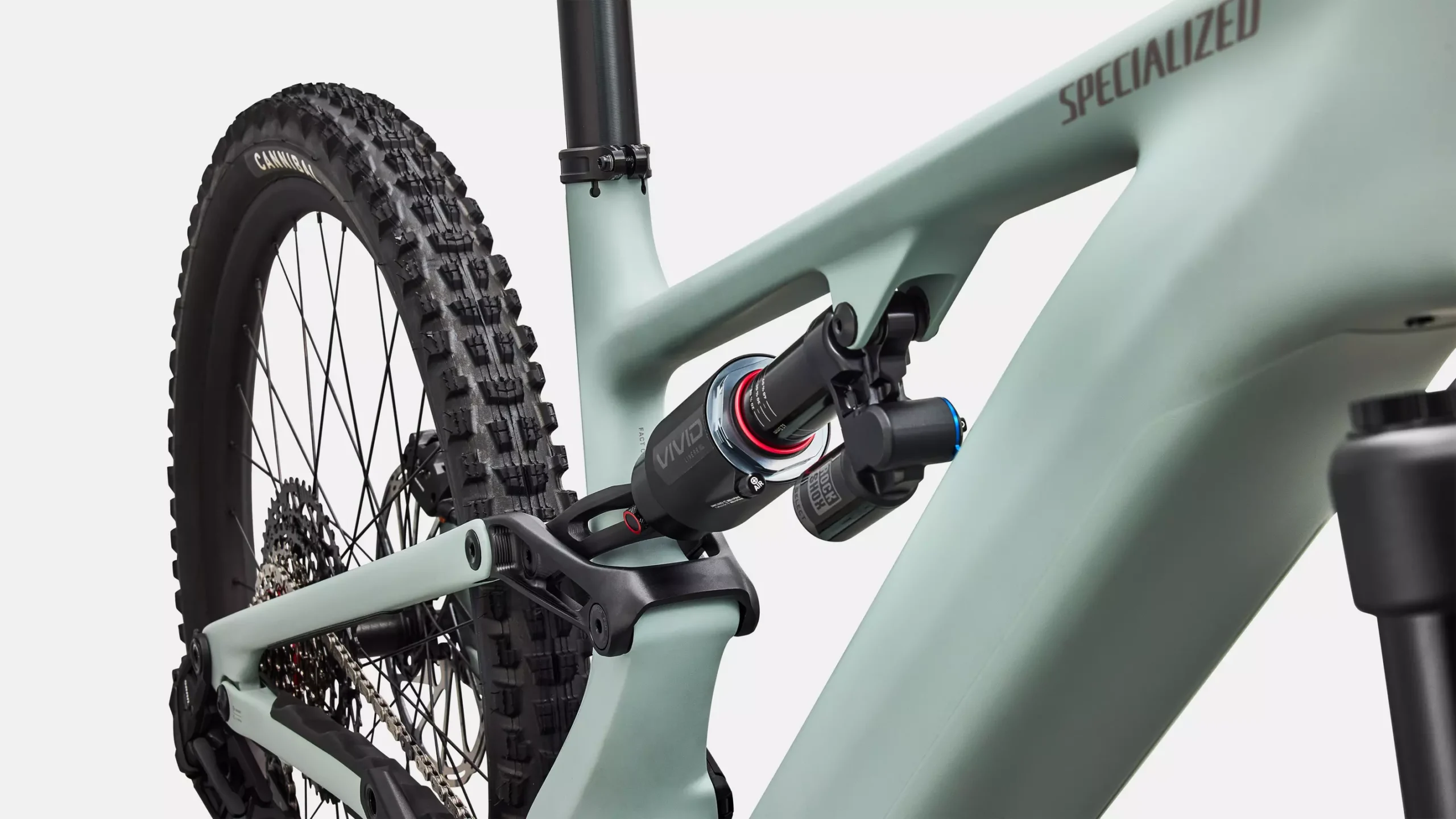

  • Amortiguador trasero: Nuevo Vivid Select de aire | 230×62.5 mm | Muelle Linear XL | Amortiguador RT con bloqueo de subida (climb switch) | Ajuste de rebote.

Transmission

  • Desviador trasero: SRAM S1000 Eagle AXS | Transmisión inalámbrica de 12 velocidades.
  • Manetas de cambio: SRAM AXS Pod Controller con abrazadera discreta.
  • Cassette: SRAM 12-speed 10-52t range.
  • Cadena: SRAM GX Eagle Transmission | 12-Speed Flattop.
  • Crankset: SRAM S1000 Alloy | ISIS interface | 155 mm length.
  • Chainring: SRAM 34t T-Type | 104 BCD | Steel.

Brakes

  • Front brake: SRAM Maven Bronze | 4-piston caliper | 220 mm hydraulic disc.
  • Rear brake: SRAM Maven Bronze | 4-piston caliper | 200 mm hydraulic disc.

Ruedas y Neumáticos

  • Ruedas: Specialized Aluminio | Bujes con rodamientos sellados | Ejes pasantes 15×110 mm / 12×148 mm | Radios DT Swiss Elemental.
  • Neumático delantero: Butcher GRID Gravity | Compuesto T9 | TLR | 29×2.4″.
  • Neumático trasero: Cannibal GRID Gravity | Compuesto T9 | TLR | 27.5×2.4″.

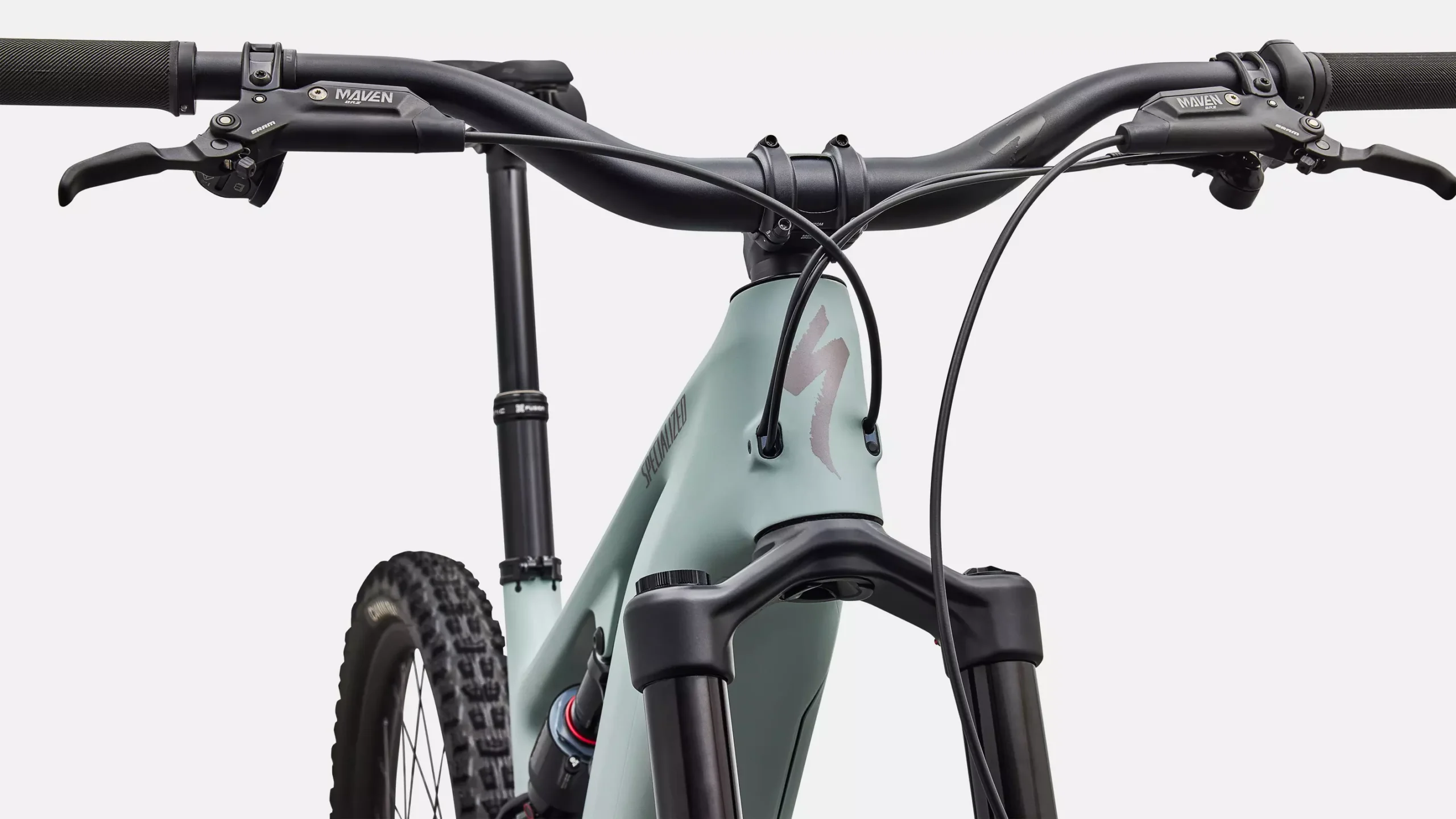

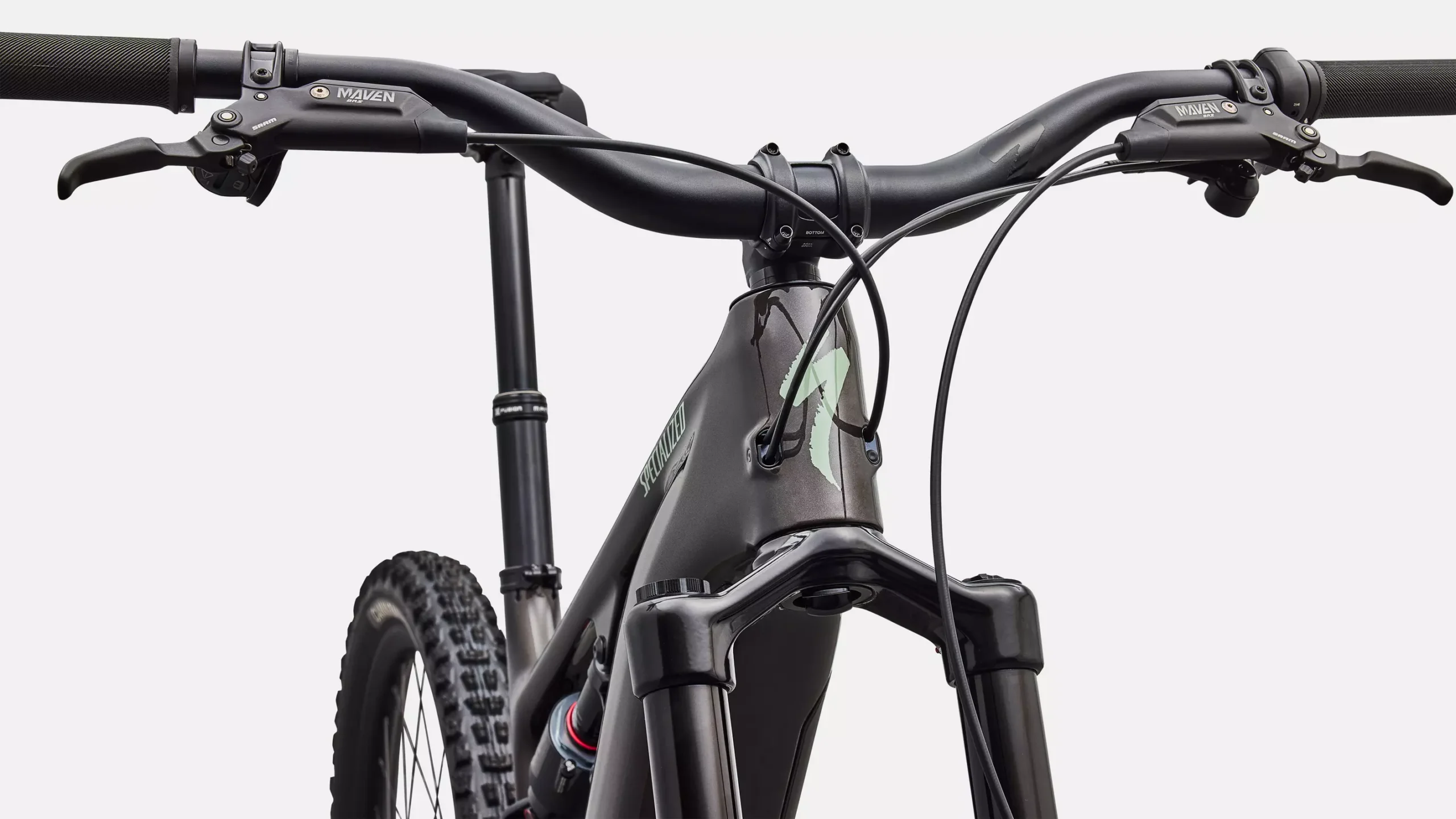

Cockpit

  • Tija de sillín: Xfusion Manic | Ajuste infinito | Mando remoto SLR LE | 34.9 mm | S2: 125mm / S3: 170mm / S4-S6: 190mm.
  • Sillín: Bridge Comp | Raíles huecos de acero Cr-Mo.
  • Manillar: Specialized Aluminio | 35 mm diámetro | S1-S2: 780x30mm / S3-S6: 800x50mm.
  • Potencia: Alloy Trail Stem | Abrazadera de 35 mm.

Información Adicional

  • Peso: 25,16 kg (Talla S4).
  • Certificación: Cumple con UL 2849 (sistema eléctrico) y UL 2271 (batería).
  • Identificador: 294788



Geometry

schematische Skizze eines Fahrrades mit eingezeichneten Geometrie-Messpunkten

S2 S3 S4 S5 S6
155 155 155 155 155
780 800 800 800 800
40 40 40 40 40
155 143 143 143 143
125 150 170 200 200
Stack 625 633 646 659 675
Reach 425 445 470 495 525
Headtube Length 95 103 117 132 149
Headtube Angle 63.6 63.6 63.6 63.6 63.6
BB Height 356 356 356 356 356
BB Drop 24 24 24 24 24
Trail 139 139 139 139 139
Fork Length (full) 597 597 597 597 597
Fork Rake/Offset 44 44 44 44 44
Front Center 773 797 828 859 897
Chainstay Length 435 435 435 435 435
Wheelbase 1208 1232 1263 1294 1331
Top-tube Length (horizontal) 580 602 630 658 691
Bike Standover Height 764 765 763 768 771
Seat Tube Length 390 405 425 445 465
Seat Tube Angle 76 76 76 76 76
Saddle Height for Effective ST Angle 690 735 780 825 870
Max Seatpost Insertion 274 289 313 337 357
Min Seatpost Insertion 80 80 80 80 80

*Specifications are subject to change without notice.
