Talla 49. Pequeño toque en la salida de la funda del cambio

View Details

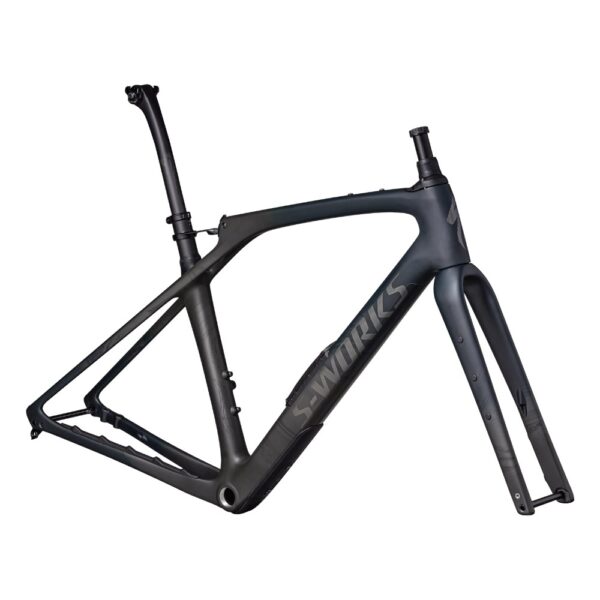

Specialized Cuadro S-Works Diverge STR talla 49

55% DTO

Original price was: 5.500,00 €.Current price is: 2.500,00 €.

Only 1 left in stock

  • Payment methods

  • Card:

  • Wire transfer:

All our bicycles are shipped assembled and adjusted at no additional cost.

Talla 49. Pequeño toque en la salida de la funda del cambio

View Details

Product description

Technical Specifications



Technical specifications

Picture Set

  • Cuadro: Talla 49. S-Works Diverge FACT 11r Carbon, suspensión Future Shock delantera y trasera, integración SWATâ„¢ Door, caja de pedalier roscada, guiado de cables interno, eje pasante de 12x142mm, disco de montaje plano (flat-mount).

Suspension

  • Horquilla: Future Shock 2.0 con amortiguador, funda Smooth Boot, carbono FACT, eje pasante de 12x100mm, disco de montaje plano (flat-mount).

Cockpit

  • Tija de sillín: Tija de sillín S-Works Carbon, 20mm de retroceso (offset).
  • Abrazadera de sillín: Specialized de aluminio, 33.3mm.

Accessories

  • SWAT: Trampilla SWAT integrada, sistema de almacenamiento interno.

Detalles del producto

  • Peso (Cuadro): 2.85 kg (6 lb, 4.5 oz).

Geometry

Talla 49 52 54 56 58 61
Components
Seat post length 350mm 350mm 350mm 350mm 350mm 350mm
Frame Measurements
Stack 569 576 593 609 633 659
Reach 365 374 383 392 401 410
Steerer pipe length 100 100 115 130 155 182
Steering head angle 70° 70.5° 71.25° 71.75° 71.75° 71.75°
Bottom bracket height (BB Height) 270 265 265 265 265 265
Bottom Bracket Drop (BB Drop) 80 85 85 85 85 85
Trail 69 66 61 57 57 57
Fork length (Full) 390 390 390 390 390 390
Fork Rake/Offset 55 55 55 55 55 55
Front Center 607 612 619 629 645 663
Pod length 429 429 429 429 429 429
Wheelbase 1023 1027 1034 1044 1060 1078
Horizontal top tube length 527 556 570 586 602 540
Top tube height (Standover) 704 730 753 778 804 833
Seat tube length 390 430 470 500 530 560
Seat tube angle 74.5° 74.25° 74° 74° 74° 74°

*Specifications are subject to change without notice.
